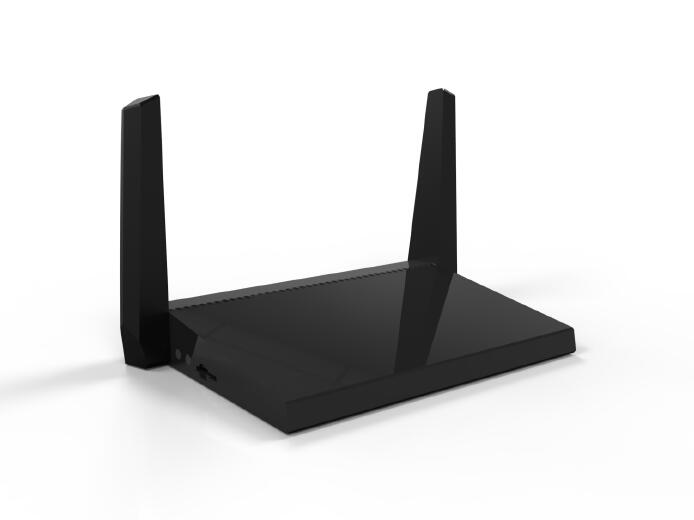

Android TV box with Router

Android TV box with Router
    Details
    Rock-chip RK3228H Quad-core Cortex-A53  H.264&H.265   4K*2K@60  Android TV box With MTK7628NN

    CPU (TV) Rock-chip RK3228H  Quad-core Cortex-A53 CPU
    OS(TV) Android 4.4
    Memory(TV) DDR3: 1GB+8GB EMMC
    Input/Output WAN*1,LAN*2,USB2.0 Host*2,USB3.0 Host, Micro SD,HDMI2.0
    Control IR(Standard), 2.4G Wireless mouse, 2.4G Air Mouse&keyboard (optional)
    Power DC 12V/2A
    Optional 2.4G Wireless mouse, 2.4G Air Mouse&keyboard
    Max Solution Decoder: H.264 4K*2K@60fps and H.265 4K*2K@60fps Output: 4K*2K@60fps
    CPU(Router) MIPS24KEc  (575/580 MHz)  with 64 KB I-Cache and 32 KB D-Cache
    OS(Router) Linux 2.6/Openwrt
    Memory(Router) DDR2:1GB
    WAN WAN*1 With PPPOE & MAC address ghost
    Wifi 2T2R802.11n 2.4GHZ with 300 Mbps PHY data rate
    Accessories HDMI Cable, Video+Audio(L/R) Cable, Adaptor, IR, User`s Manual,W1 Box

    Other features Clude disk,support SMB Sever、WebDAV Sever

    Feature
      ---HDMI2.0 video output, connect HDTV with the android TV box for H.264 4K*2K@60fps and H.265 4K*2K@60fps video playback
      ---Composite and R/L audio output, connect normal TV set with the android TV box for SD video playback
      ---Rock-chip RK3228H Quad-core Cortex-A53, CPU frequency is 1.5GHz, DDR3 RAM is 1G,built in 8G EMMC memory and powered by Android 4.4
      ---Connect to the internet with Google Chrome browser to access any website for entertainment, information or education.
      ---Support flash player, Watch online video from YouTube, Netflix, Hulu, Amazon, or any local video sites and even video-on-demand services.
      ---Chat with Facebook or Twitter, Skype and Yahoo message etc
      ---Access to Android app-store to download, install and run the huge number of Android applications that are available
      ---Stream HD videos, listen to music and display images from your local memory or from any computer on the home LAN network (wireless DLNA)
      ---Built in WiFi module and antenna, 2G-32G flash memory (optional)
      ---Direct power supply via power port with power adaptor
      ---The TV box can support infrared remote control(Standard), and support USB mouse, USB keyboard, Air mouse, wireless mouse and wireless keyboard
      ---App Installer for application installation from USB/ Micro SD
    Specification
    Main Spec:
      ---Product: Android TV box
      ---Frequency: 2GHz
      ---RAM: DDR3, 1G
      ---Storage:  8G EMMC
      ---OS: Android 4.4
    Main Function:
      ---UI: Android 4.4  system UI style
      ---Browser: Google Chrome
      ---Media Player: Local video playback including Mpeg1/2/4,  H.264 4K*2K@60fps and H.265 4K*2K@60fps, VC-1, WMV, AVI, MKV, MOV
      ---Online Video: Access to internet, online video playing
      ---Music: Local music player: MP3, WAV, WMA
      ---Online music: Access to internet, online music playing
      ---Picture viewer: Support multi format: BMP, JPG, TIF, PNG, GIF
      ---Software update: Support Micro SD card for software update
      ---External storage: Micro SD card, USB storage support
      ---Home Router with clude sever
    Output:
      ---HDMI output: HDMI 2.0 with 4K*2K@60
      ---Audio&Video: Composite and L/R audio
      ---100M LAN
      ---WiFi: Internal 802.11 a/b/g/n 300M
    Input:
      ---USB 1: Type A, USB 3.0 Host
      ---USB 2: Type A, USB 2.0 Host  for Clude disk
      ---USB 3: Type A, USB 2.0 OTG&Host
      ---Micro SD: Tiny flash, up to 32GB
      ---IR:>8 meters
      ---WAN(ISP)
      ---Power: Adaptor, 12V 2A
    Resolution: 4K*2K@60bps
    Net Weight : About 220g
    Gross Weight: About 600g
    Power Consumption:<3Watts
    Remote Distance: >8 Meters
    Storage Temperature: -10~50 centigrade
    Working Temp: <50 centigrade after 24 hours working
    WiFi: 802.11 b/g/n
    Accessories:
        ---Android TV box 1pc
        ---Power adaptor 1pc
        ---User`s manual 1pc
        ---IR Remote control 1pc
        ---HDMI cable 1pc

        ---W1 box 1pc
