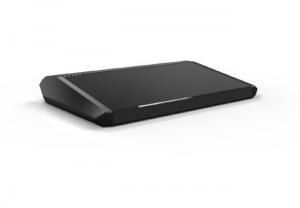

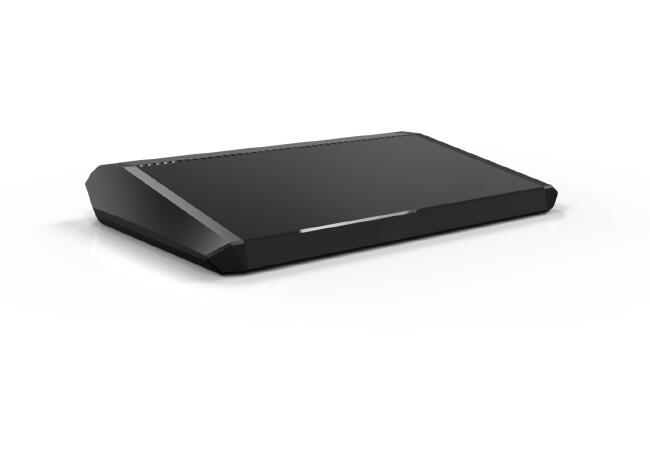

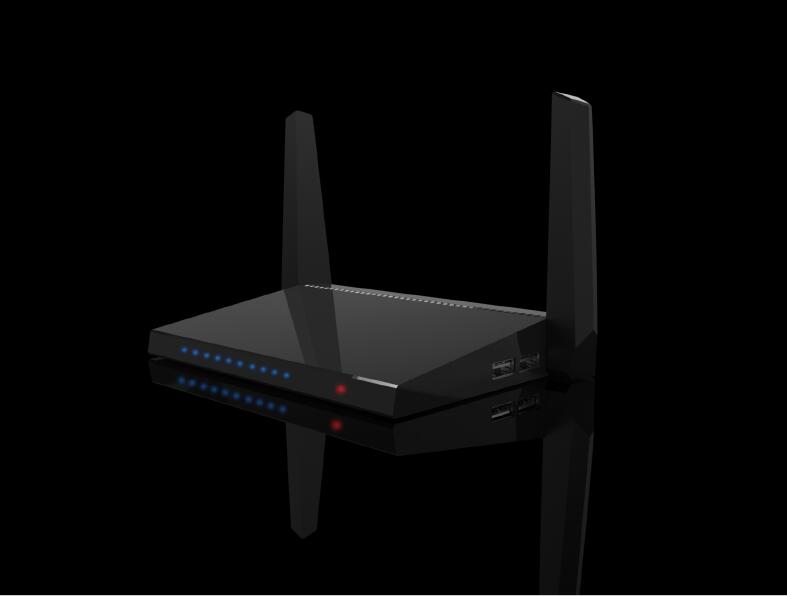

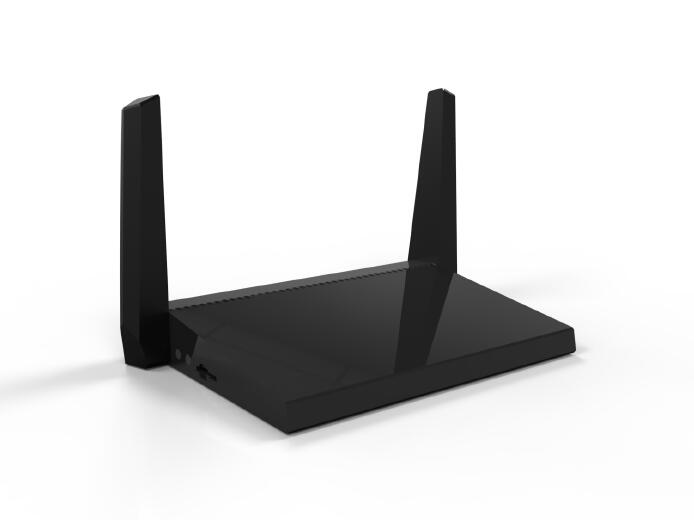

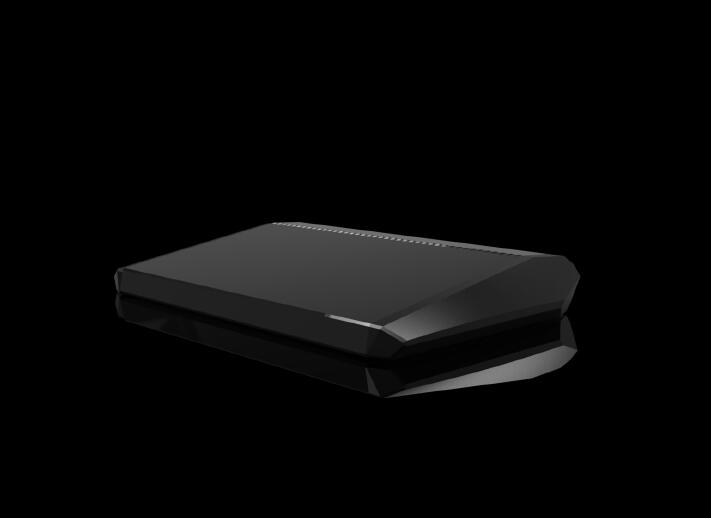

OTT box with Router W1

OTT box with Router W1
  • Model:W1
  • Input:DC 5V 1A
  • Memory:128M
  • Output:HDMI
  • MAX Resolution:1080P
  • Network:802.11B/G/N Wifi Built in
  • Accessories:HDMI External Cable,User`s Manual,Gift Box,USB Cable,Adaptor 5V 1A with USB port(Optional)
  • Control:Smart phone,tablet PC
  • Power:DC 5V/1A
Details
Rock-chip RK3228H Quad-core Cortex-A53  H.264&H.265   4K*2K@60  Android TV box With MTK7628NN

CPU (TV) Rock-chip RK3228H  Quad-core Cortex-A53 CPU
OS(TV) Android 4.4
Memory(TV) DDR3: 1GB+8GB EMMC
Input/Output WAN*1,LAN*2,USB2.0 Host*2,USB3.0 Host, Micro SD,HDMI2.0
Control IR(Standard), 2.4G Wireless mouse, 2.4G Air Mouse&keyboard (optional)
Power DC 12V/2A
Optional 2.4G Wireless mouse, 2.4G Air Mouse&keyboard
Max Solution Decoder: H.264 4K*2K@60fps and H.265 4K*2K@60fps Output: 4K*2K@60fps
CPU(Router) MIPS24KEc  (575/580 MHz)  with 64 KB I-Cache and 32 KB D-Cache
OS(Router) Linux 2.6/Openwrt
Memory(Router) DDR2:1GB
WAN WAN*1 With PPPOE & MAC address ghost
Wifi 2T2R802.11n 2.4GHZ with 300 Mbps PHY data rate
Accessories HDMI Cable, Video+Audio(L/R) Cable, Adaptor, IR, User`s Manual,W1 Box
Other features Clude disk,support SMB Sever、WebDAV Sever

Introduction
The models of W1 are Quad-core Android TV Box With Router. It use the chipset of Rock-chip RK3228H & MEDIATEK  MT7628, with full Android capabilities and multimedia services.
Feature
  ---HDMI2.0 video output, connect HDTV with the android TV box for H.264 4K*2K@60fps and H.265 4K*2K@60fps video playback
  ---Composite and R/L audio output, connect normal TV set with the android TV box for SD video playback
  ---Rock-chip RK3228H Quad-core Cortex-A53, CPU frequency is 1.5GHz, DDR3 RAM is 1G,built in 8G EMMC memory and powered by Android 4.4
  ---Connect to the internet with Google Chrome browser to access any website for entertainment, information or education.
  ---Support flash player, Watch online video from YouTube, Netflix, Hulu, Amazon, or any local video sites and even video-on-demand services.
  ---Chat with Facebook or Twitter, Skype and Yahoo message etc
  ---Access to Android app-store to download, install and run the huge number of Android applications that are available
  ---Stream HD videos, listen to music and display images from your local memory or from any computer on the home LAN network (wireless DLNA)
  ---Built in WiFi module and antenna, 2G-32G flash memory (optional)
  ---Direct power supply via power port with power adaptor
  ---The TV box can support infrared remote control(Standard), and support USB mouse, USB keyboard, Air mouse, wireless mouse and wireless keyboard
  ---App Installer for application installation from USB/ Micro SD
Specification
Main Spec:
  ---Product: Android TV box
  ---Frequency: 2GHz
  ---RAM: DDR3, 1G
  ---Storage:  8G EMMC
  ---OS: Android 4.4

Main Function:
  ---UI: Android 4.4  system UI style
  ---Browser: Google Chrome
  ---Media Player: Local video playback including Mpeg1/2/4,  H.264 4K*2K@60fps and H.265 4K*2K@60fps, VC-1, WMV, AVI, MKV, MOV
  ---Online Video: Access to internet, online video playing
  ---Music: Local music player: MP3, WAV, WMA
  ---Online music: Access to internet, online music playing
  ---Picture viewer: Support multi format: BMP, JPG, TIF, PNG, GIF
  ---Software update: Support Micro SD card for software update
  ---External storage: Micro SD card, USB storage support
  ---Home Router with clude sever

Output:
  ---HDMI output: HDMI 2.0 with 4K*2K@60
  ---Audio&Video: Composite and L/R audio
  ---100M LAN
  ---WiFi: Internal 802.11 a/b/g/n 300M

Input:
  ---USB 1: Type A, USB 3.0 Host
  ---USB 2: Type A, USB 2.0 Host  for Clude disk
  ---USB 3: Type A, USB 2.0 OTG&Host
  ---Micro SD: Tiny flash, up to 32GB
  ---IR:>8 meters
  ---WAN(ISP)
  ---Power: Adaptor, 12V 2A


Resolution: 4K*2K@60bps
Net Weight : About 220g
Gross Weight: About 600g
Power Consumption:<3Watts
Remote Distance: >8 Meters
Storage Temperature: -10~50 centigrade
Working Temp: <50 centigrade after 24 hours working
WiFi: 802.11 b/g/n

Accessories:
    ---Android TV box 1pc
    ---Power adaptor 1pc
    ---User`s manual 1pc
    ---IR Remote control 1pc
    ---HDMI cable 1pc
    ---Video&Audio cable 1pc
    ---W1 box 1pc
